2D Laser Cutting and Laser Stamping Processing

2D laser cutting and laser stamping

for standard contours and complex outlines

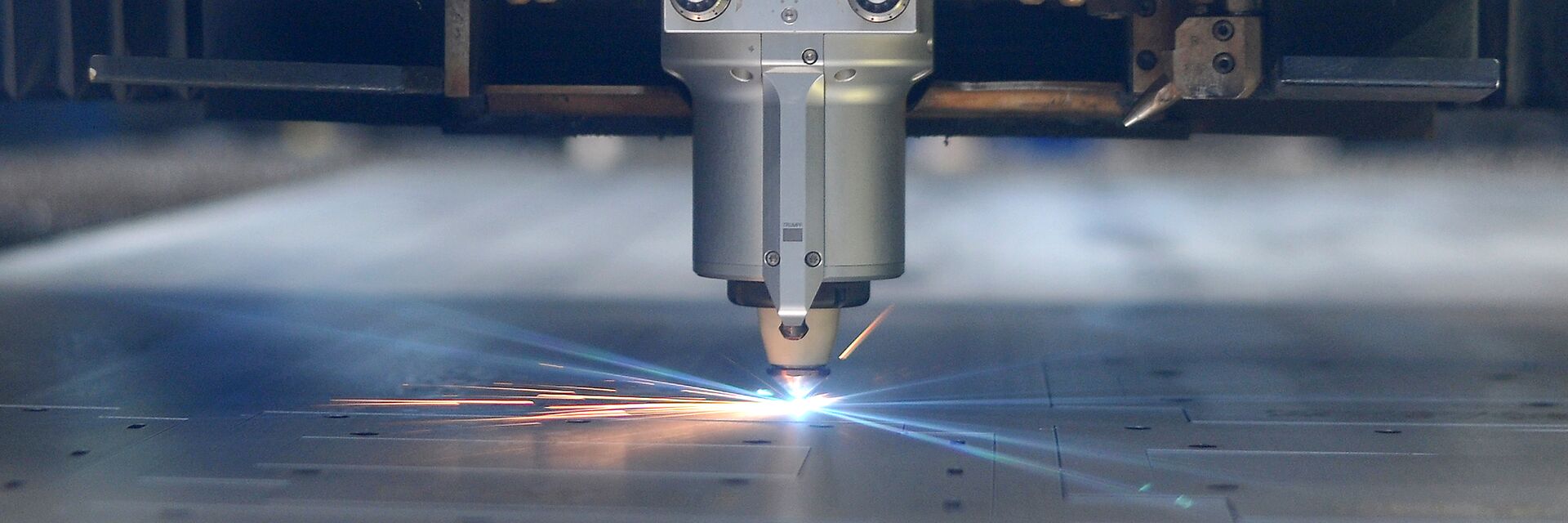

We recommend 2D laser cutting for complex outlines and standard contours. In our cutting center, four laser cutting systems process metal sheets up to 20 mm thick in a highly dynamic 2D laser cutting process. We can machine special formats up to a maximum working area of 4000 mm x 2000 mm. For the most part, the systems are automatically provided with material by Liftmasters and a connection to high-bay storage.

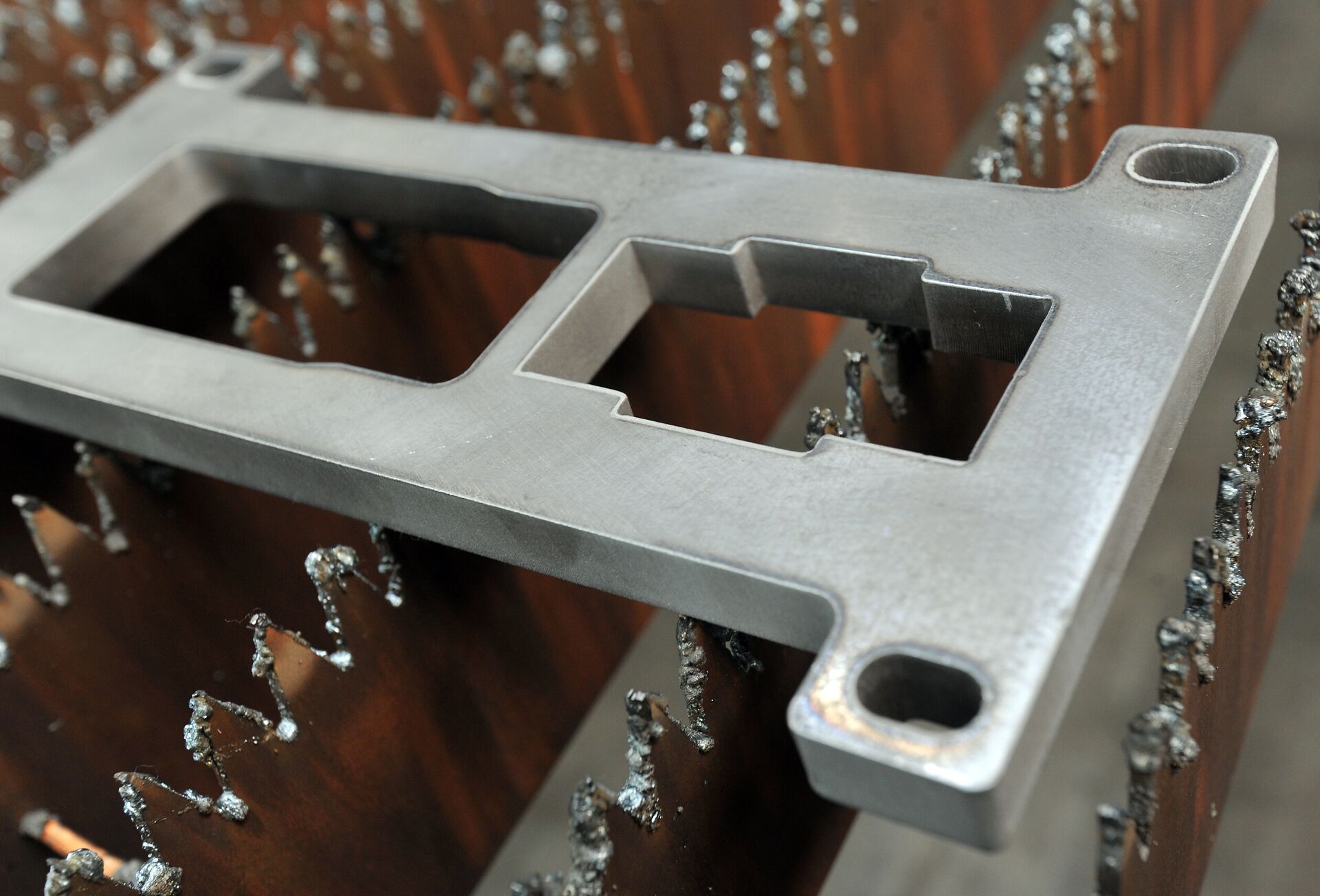

For complex sheet metal processing, we use two high-performance, combined laser stamp machines. A punching head is used to create standard contours and threads and to perform re-shaping work. Laser cutting is used for intricate internal and external contours with smooth edges that are free of burrs. The high degree of automation shortens the throughput time for stamped parts while maintaining consistently high quality.

Your benefits

  • Quick, high-precision production of complex outlines and standard contours
  • Outstanding edge quality depending on material grade, even for small radii and diameters
  • Cost-effective metal processing, from single parts to series production
  • Also highly effective for special formats, inlay work (post-production finishing of manufactured sheets), and processing with special apparatus
  • Combined laser stamp machines for quickly executing complex projects
2D Laser Cutting and Laser Stamping Processing

Production capacities

Starting parts

Thin sheet metal

2D laser cutting

Sheet thicknesses:
up to 20 mm (steel)
up to 12 mm (high-grade steel)
up to 8 mm (aluminium)

Maximum dimensions:
1 x 4.000 mm x 2.000 mm
2 x 3.000 mm x 1.500 mm
1 x 2.500 mm x 1.250 mm

Stamping-laser processing

Sheet thicknesses:
up to 6 mm (steel)
up to 5 mm (high-grade steel)
up to 3 mm (aluminium)

Maximum dimensions:
3,000 mm x 1,500 mm

2D Laser Cutting and Laser Stamping Processing

We’re here for you

When you need high-precision laser parts or perforated metal sheets, drill holes, or threads – we do the laser cutting you need, quickly, efficiently, and according to your requirements.
